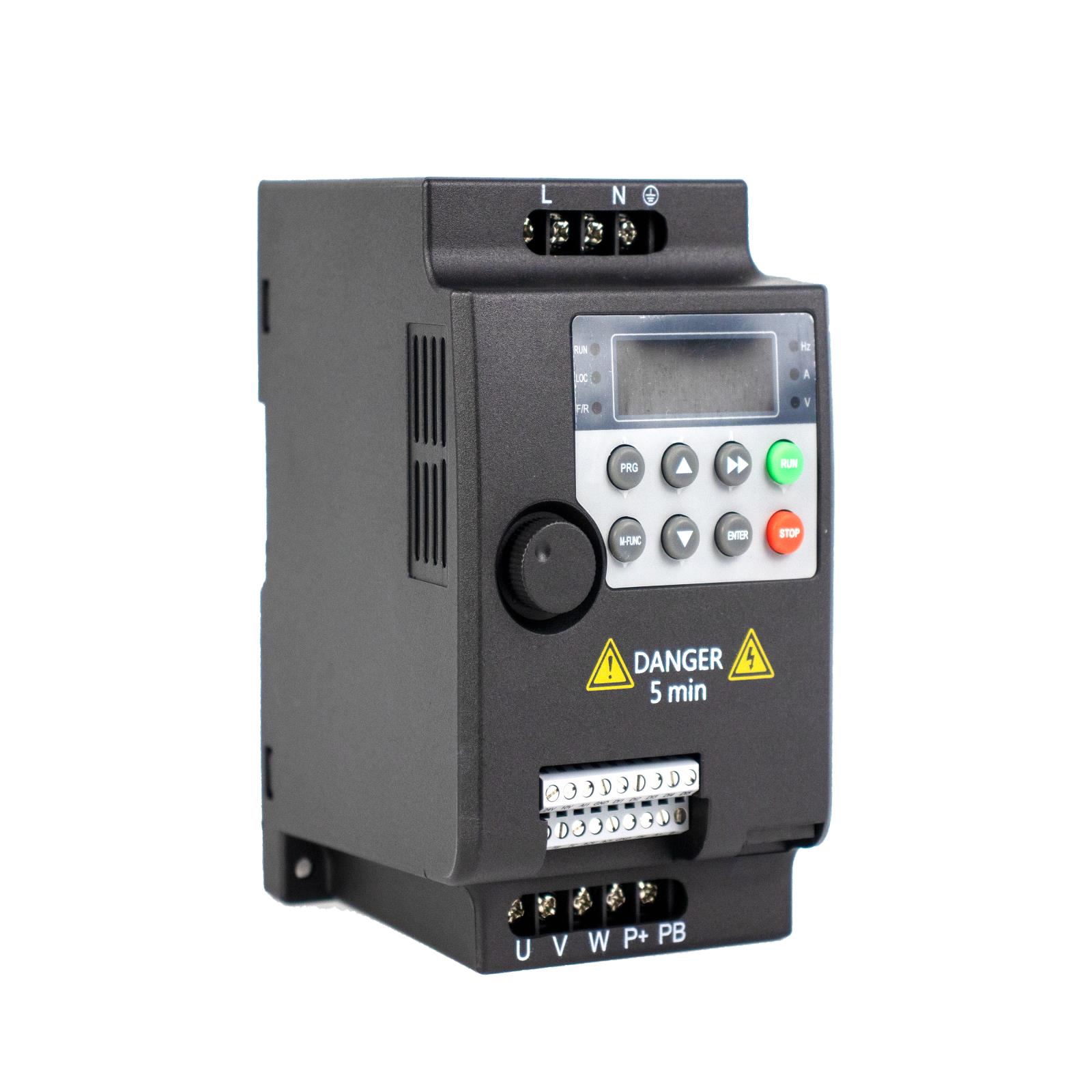

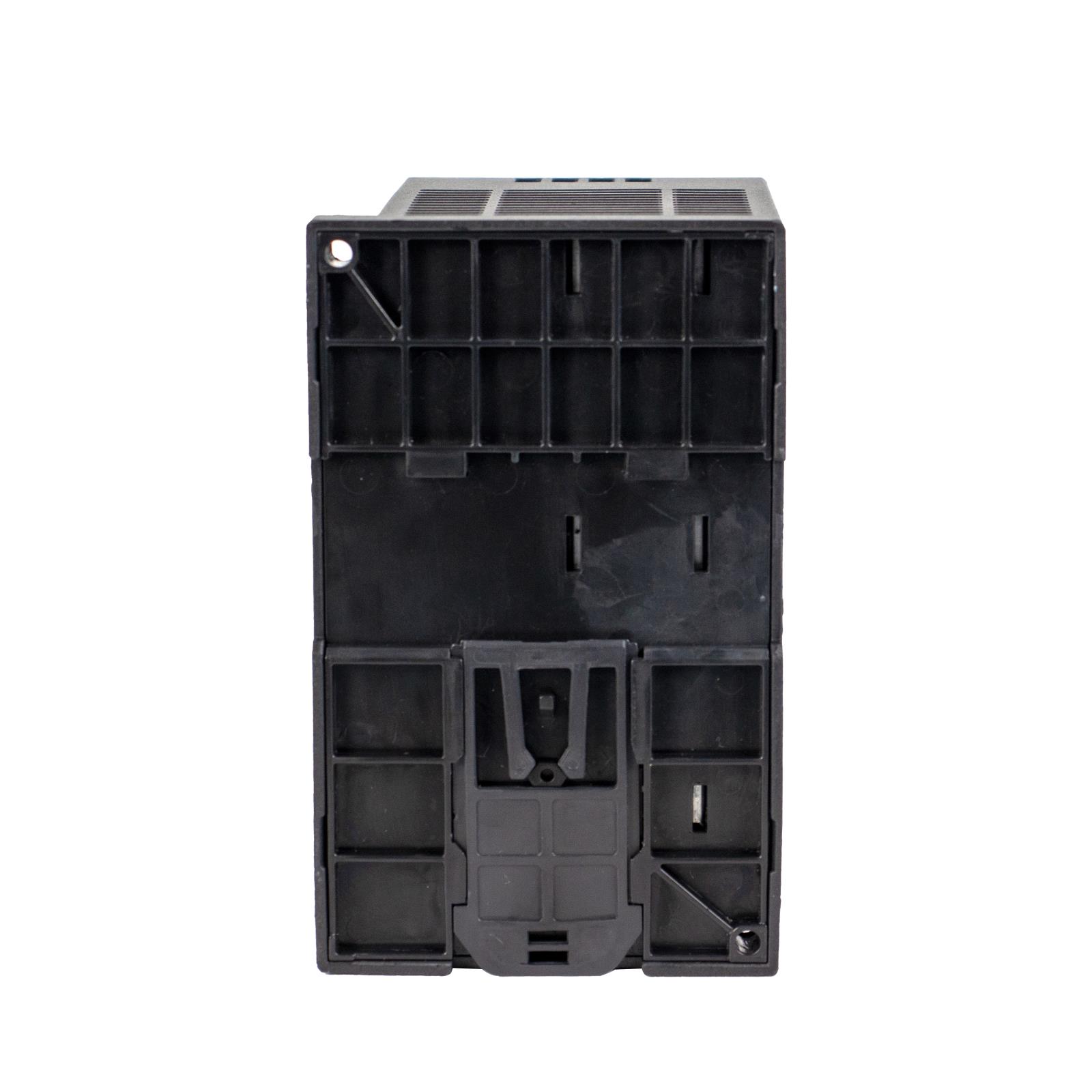

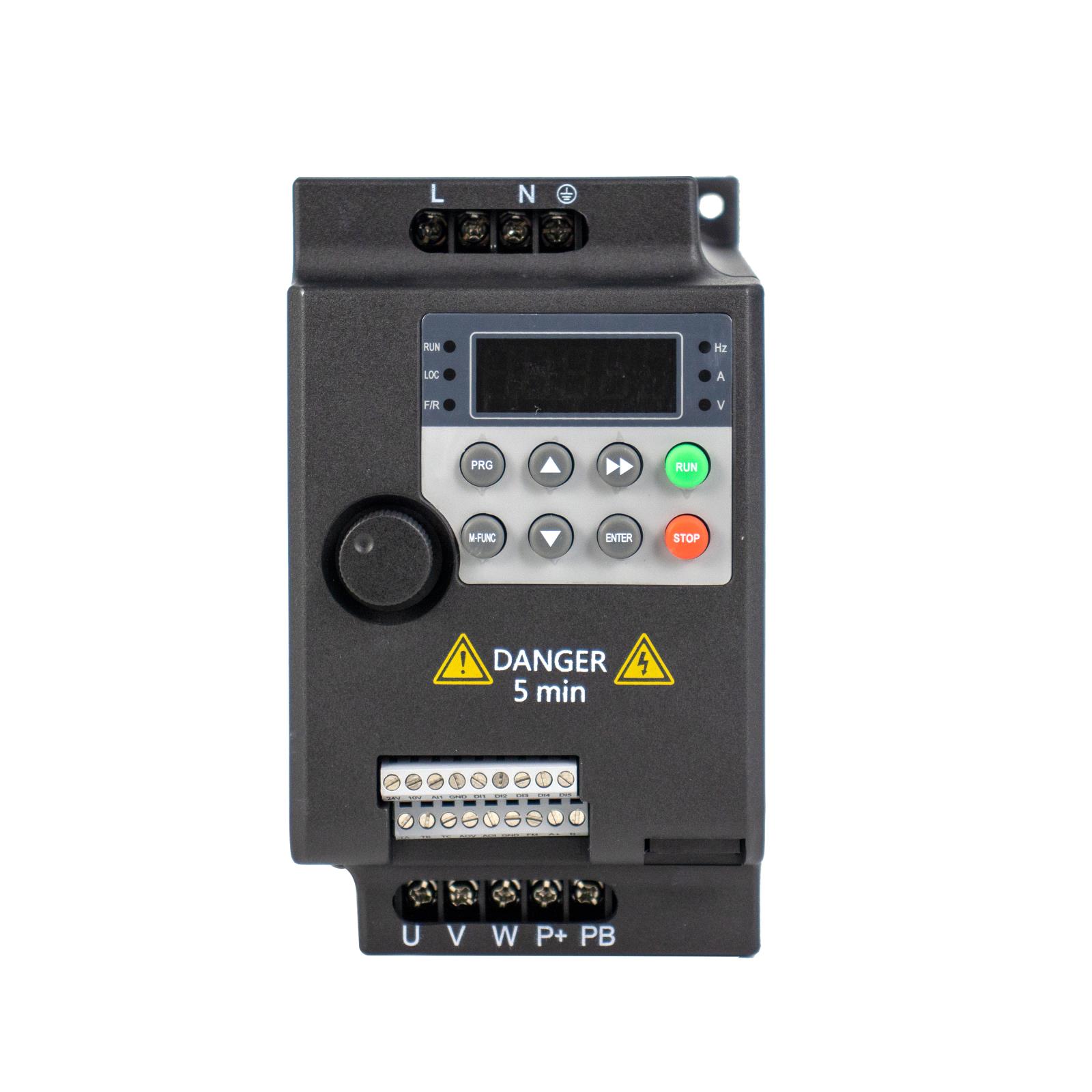

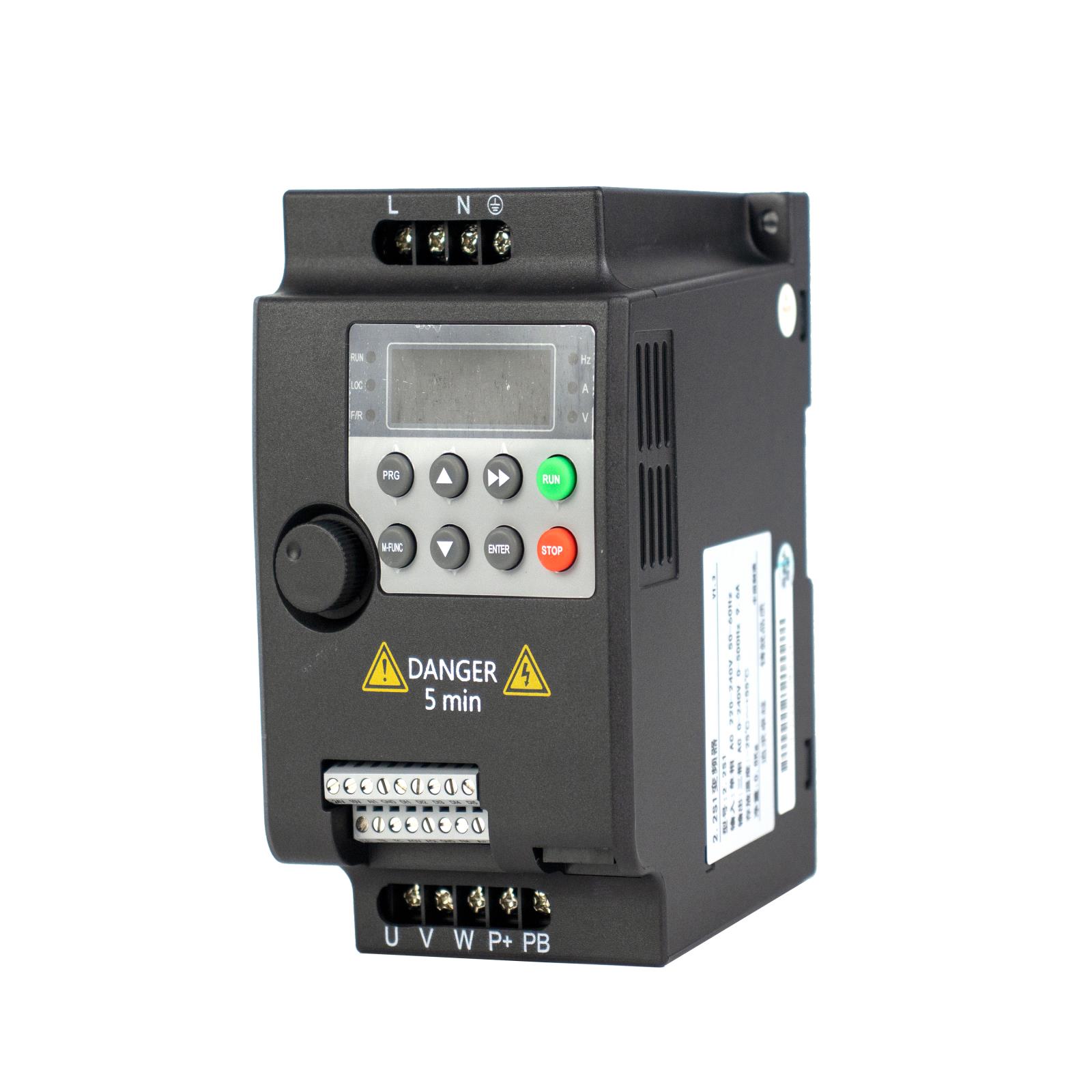

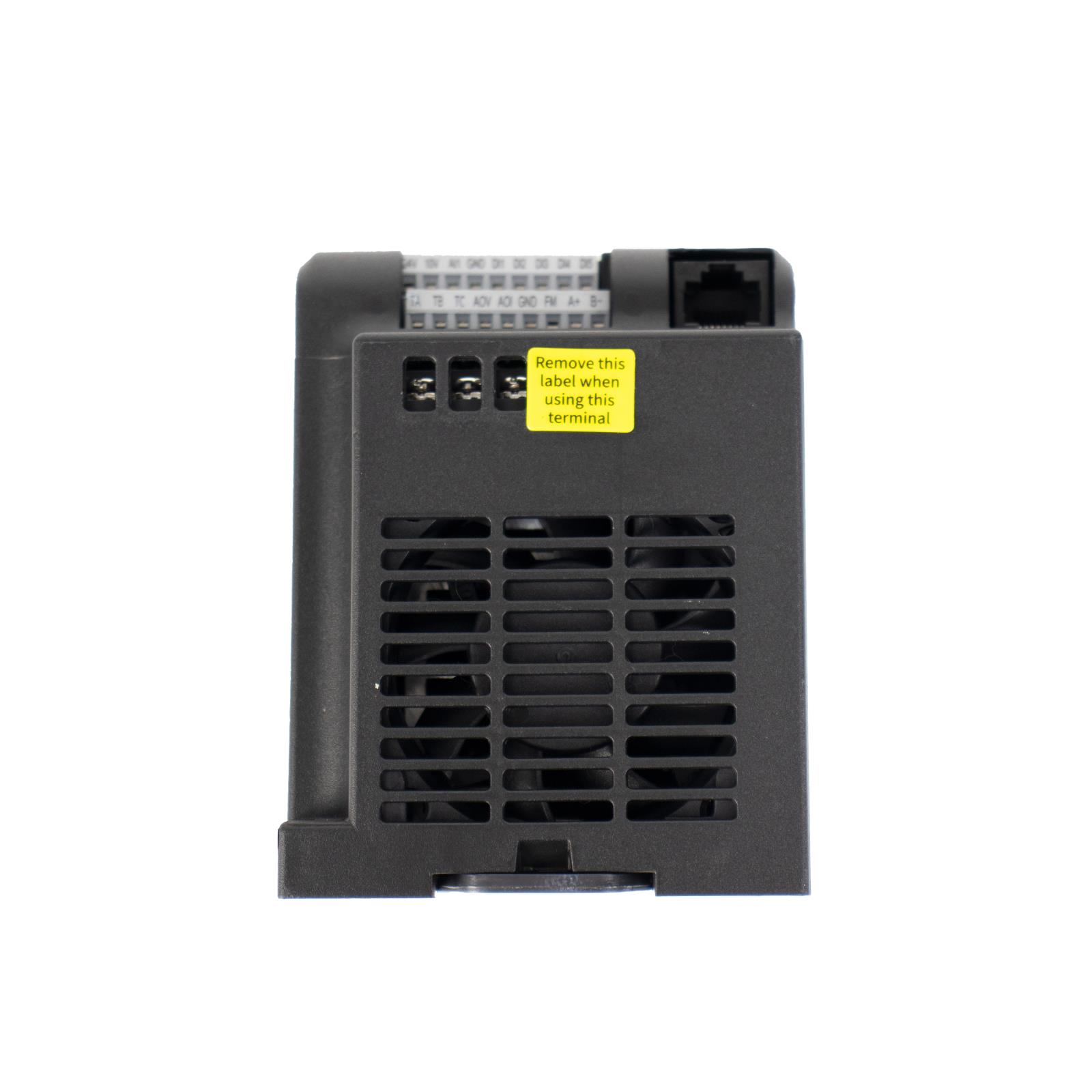

■ The operating command can be switched through various methods such as the operation panel, control terminals, and serial communication;
■ The main frequency command can be achieved through digital setting, analog voltage setting, analog current setting, pulse setting, and communication setting;
■ Equipped with control functions such as automatic/manual torque boost, V/F curve, cycle-by-cycle current limit, acceleration/deceleration curve, DC braking, jog control,
PLC and multi-speed operation, built-in PID, timing control, momentary power loss ride-through, and automatic voltage adjustment;
■ Features protection functions including output phase loss, overcurrent, overvoltage, overload, and overtemperature;
■ Includes RS-485 communication capability.
■ Outstanding Performance
■ Operating commands can be switched through various methods such as the operation panel, control terminals, and serial communication;
■ Various Setting Methods
■ Main frequency commands can be achieved through digital setting, analog voltage setting, analog current setting, pulse setting, and communication setting;
■ Excellent Control Performance
■ Features include automatic/manual torque boost, V/F curve, cycle-by-cycle current limiting, acceleration/deceleration curves, DC braking, jog control, PLC and
multi-speed operation, built-in PID, timing control, continuous operation during momentary power loss, automatic voltage adjustment, and other control functions;
■ Comprehensive Protection Features
■ Equipped with protection functions such as output phase loss, overcurrent, overvoltage, overload, and overtemperature;
■ RS485 Communication
■ Includes RS-485 communication functionality.

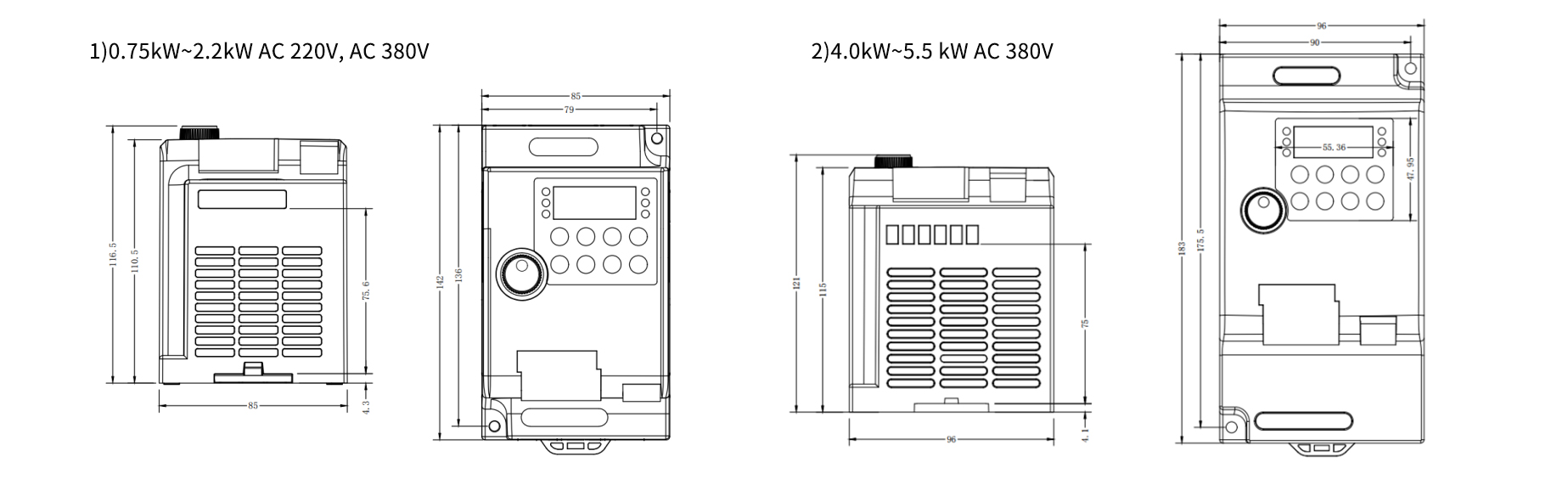

Input Power | Model | Power | Output Current | Dimensions Length * Width * Height （mm） | Mounting Dimensions |
Single-Phase AC200V-240V | 0.75S1-220V | 0.75KW | 4 | 142*85*116.5 | 136*79-M4 |
1.5S1-220V | 1.5KW | 7 | |||
2.2S1-220V | 2.2KW | 9.6 | |||
4.0S1-220V | 4.0KW | 17 | 183*96*121 | 175.5*90-M5 | |
Three-Phase AC 340V-440V 50Hz/60Hz | 0.75G3-380V | 0.75KW | 2.1 | 142*85*116.5 | 136*79-M4 |
1.5G3-380V | 1.5KW | 3.8 | |||
2.2G3-380V | 2.2KW | 5.1 | |||
4.0G3-380V | 4.0KW | 9 | 183*96*121 | 175.5*90-M5 | |
5.5G3-380V | 5.5KW | 13 |
![RZ]K901V]7HB_{HQ{{%DT[5.jpg](http://www.hs-bp.com/upload/202109/27/202109271746241449.jpg "RZ]K901V]7HB_{HQ{{%DT[5.jpg"){kind=small}
HS-310技术规格

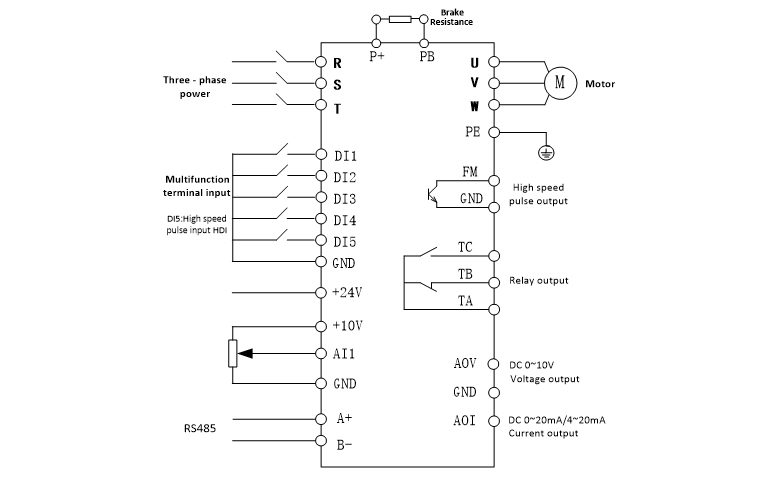

Item | Technical Specification | ||
Output | Output voltage | 0V to input voltage | |
Output frequency | Low frequency mode: 0.00Hz~500.00Hz High frequency mode: 0.0Hz ~ 3200.0Hz | ||
Carrier frequency | 0.8kHz to 16.0kHz (adjustable based on the load) | ||
Overload capacity | 150%/1min | ||
Input | Rated voltage/frequency | Single-phase: 220V, 50/60Hz Three-phase: 380V, 50/60Hz | |
Voltage fluctuation range | Three-phase: 380V±15%. Allowable range: AC 323V～437V Single-phase: 220V±15%. Allowable range: AC 187V～253V | ||
Frequency fluctuation range | ±5% | ||
Control performance | et frequency resolution | Digital setting | 0.01Hz |
Analog setting | Maximum frequency × 0.025% | ||
Control mode | V/F control, sensorless vector control (SVC) | ||
Starting torque | SVC | 0.25Hz/150% rated torque | |
Speed control range | SVC | 1: 200 | |
Steady-state velocity accuracy | SVC | Maximum speed ± 0.5% | |
Torque lift | Torque lift 0.0% to 30.0% | ||
V/F curve | Linear, multi-point, V/F complete separation and V/F semi-separation | ||
Cycle-by-cycle current limit | Fast response and normal operation in the V/F mode | ||
Acceleration and deceleration curve | Linear or S-curve acceleration and deceleration; 4 kinds of acceleration and deceleration time, 0.1s to 6,500.0s | ||
Automatic voltage regulation | Automatically maintain the constant output voltage in case of changes in grid voltage | ||
DC braking | DC braking frequency: 0.00 Hz ~ Maximum frequency DC braking current: 0.0%~100.0% DC braking time: 0.0s~100.0s | ||
Jog control | Jog frequency range: 0.00 Hz ~ Maximum frequency Jog acceleration and deceleration time: 0.1s~6500.0s | ||
PLC and multi-speed | Built-in PLC function, supporting 16 speeds at most | ||
Overvoltage/overcurrent stall control | Automatic limit of running current and voltage to prevent frequent tripping | ||
Torque limit and control | Automatic limit of torque current, for torque control in vector control mode | ||
Control input | Running command | Operation panel, control terminal and serial communication setting, for switching of multiple modes | |
Primary frequency command | Digital setting, analog voltage setting, analog current setting, pulse setting and communication setting, for switching of multiple modes | ||
Auxiliary frequency command | Combined with the primary frequency for fine tuning and synthesis of frequency | ||
Output signal | Input terminal | ■ Keyboard potentiometer input, 0-5V ■ 5 programmable input terminals, with one supporting high speed pulse input up to 50 KHZ ■ One AI terminal supporting 0-10 V voltage input , 0-20 mA and 4-20 mA current input | |
Output terminal | ■ One high speed pulse output terminal (or programmable open collector output) ■ One programmable relay output ■ Two AO outputs, one supporting 0-10V voltage output and the other supporting 0-20mA or 4-20mA current output | ||
Serial communication port | RS-485 port | ||
Protection function | Overvoltage, undervoltage, overcurrent, current limiting, overload, overheat, electronic thermal overload relay, overvoltage stall, data protection, etc. | ||
Display | 5-digit digital display (LED) and status indicator | Parameter setting: Display the parameter number and value | Function code, data, status |
Running display: running frequency, current, etc. | |||
Fault display: fault code | |||
